Static Model Compare Configuration

PANEL VAN 2.0L TDCi (ELWB)

Model Specification Section

Model Image
Image Alt Text

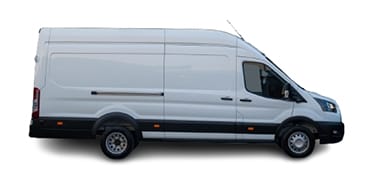

PANEL VAN 2.0L TDCi ELWB
Model Key
van-2-0l-tdci-elwb
Is Enabled
true
Heading Title
PANEL VAN 2.0L TDCi (ELWB)
Heading Description
CTA Label
View Model
CTA Link
/content/ecomm-img/za/en_za/home/future-vehicle/transit-van/transit-van-470elwb.html
Price Label
Price
Static Price
Wheel Label
Wheel Size
Body Style Label
Body Stylel
More Spec

ENGINE

  • Type: Duratorq TDCi 2.0
  • No. of cylinders: 4 in line
  • Displacement (cm3): 1996
  • Power (kW @ rpm): 121
  • Torque (Nm @ rpm): 390
  • Fuel requirement: Diesel
More Spec

TRANSMISSION

  • Final drive: 4.1
  • Drive Modes: Normal, Eco, Slippery
  • Type: 6-speed manual
More Spec

PERFORMANCE

  • Fuel Economy - NEDC ℓ/100km (combined cycle)*: 9.3
  • AdBlue Injector
  • CO2 Emission : Combined [g/km]*: 244
More Spec

SUSPENSION

  • Front: Independent MacPherson struts, variable-rate coil springs, stabiliser bar and gas pressurised shock absorbers
  • Rear suspension: leaf springs, gas-pressurised shock absorbers
More Spec

STEERING

  • Type: rack-and-pinion steering with rack-mounted power assisted
  • Turning circle (kerb-to-kerb) (m): 13.3
More Spec

BRAKES

  • Front ventilated discs
  • Rear solid discs
  • Emergency brake warning
  • Anti-lock Braking System (ABS) with Electronic Brakeforce Distribution (EBD)
  • Emergency Brake Assist (EBA)
More Spec

WHEELS AND TYRES

  • 195/75 R16 - Steel wheel - (Dual rear wheel)
  • Spare wheel - Steel wheel
More Spec

DIMENSIONS (mm) - EXTERIOR

  • Overall length (mm): 6,758
  • Overall width - with mirrors (mm): 2,126
  • Wheel base (mm): 3,750
  • Sliding door width (mm): 1,300
  • Sliding door aperture height (mm): 1,600
  • Rear door width (mm): 1,565
  • Rear door aperture height (mm): 1,987
  • Front track (mm): 1,740
  • Rear track (SRW) (mm): 2,110
More Spec

DIMENSIONS - INTERIOR

  • Max load length @ floor (no Bulkhead) (mm): 4,373
  • Max load length @ floor (with Bulkhead) (mm): 4,217
  • Max load length @ 1.2m high (with Bulkhead) (mm): 4,073
  • Max load width (mm): 1,784
  • Load space between wheel arches (mm): 1,392
  • Load floor to roof (mm): 2,025
  • Loadspace (max load) (m3): 15.1
  • Loadspace (SAE method) (m3): 13.5
  • Loadspace (VDA method) (m3): 14
More Spec

VEHICLE MASSES

  • Gross Vehicle Mass (GVM) (kg): 4,700
  • Gross Combined Mass (GCM) (kg): 7,000
  • Fuel tank capacity (L): 80
  • Kerb weight (kg): 2,355
  • Gross payload (kg): 2,270
  • Towing mass (braked) (kg): 3,500
  • Towing mass (unbraked) (kg): 750
More Spec

SAFETY & SECURITY

  • Driver airbag
  • Electronic Stability Programme (ESP)
  • Hill Launch Assist (HLA)
  • Traction control
  • Rollover Mitigation (ROM)
  • Centre high-mounted rear stop lamp
  • Power door locks
  • Door entry remote
  • Rear doors mounted with lock/unlock switch
  • Drive-away locking with crash unlocking
  • Door auto-relocking enabled
  • Two-stage unlocking with configurable unlocking config
  • Tyre Pressure Monitoring System
  • Alarm & Mobiliser
More Spec

COMFORT AND CONVENIENCE

  • Radio with single AM/FM antenna, 2 front speakers, 2 tweeters
  • USB port, Bluetooth® and Voice Control
  • Steering-wheel-mounted audio controls
  • Vechile's Modem connected to Ford app
  • Ford app Connect - featuring Remote Start (AT only), Lock / Unlock, Vehicle Locator, Vehicle Health Alerts, Vehicle Status, Oil Life, Enhanced Customer Connectivity Settings
  • Digital Instrument Cluster with Configurable Display
  • Colour Multi-Function Touch Screen Display: 12 "Screen
  • SYNC®4
  • Marketing CV Pack 1
More Spec

EXTERIOR

  • 180° opening Cargo doors
  • Headlamps - projector-style halogen reflector lights (quad-beam)
  • Manual headlamp levelling
More Spec

INTERIOR, SEATING AND LOAD SPACE

  • Cup Holders - 2
  • Standard cloth seats
  • Front driver 3-point seatbelt with pre-tensioners
  • Front passenger 3-point seatbelts with load limiter
  • Front power windows with driver one-touch up/down functionality
  • Manual 2-Way Driver Seat
  • Driver Arm Rest
  • Partial floor cover - rubber insulated easy-clean (or similar)
  • Load space lighting
  • Load compartment floor tie-down hooks: 12
More Spec

Options

  • Trailer tow attachments (O)
  • Extra heavy duty batteries (O)
  • Manual Aircon (O)
  • Driver Assistance Package With 360 View Camera
More Spec

Ford PROTECT

  • Comprehensive warranty: 4years / 120 000 km
  • Roadside assistance: 4years / unlimited km
  • Corrosion warranty: 5 years / unlimited km
  • Service plan: 6
  • Service intervals: 15 000 km
More Spec

Paint Colours

  • Frozen White
  • Moondust Silver (O)
More Spec

Driver Assistance Package with 360-degree Camera

  • High-Mounted LED Downlight
  • Dual Exterior Power Mirror Power Fold Back
  • Collision Mitigation System 3 Level 2
  • Adaptive Speed Control
  • Blind Spot Information System
  • Lane Changing Warning & Aid
  • Reverse Parking Aid
  • Front Parking Aid
  • Parking Slot Aid
  • Reverse Brake Assist
  • ICE Pack 3
  • Front/Side/Rear View Camera
  • Front Fog Lamps
More Spec

MARKETING CV PACK #1

  • Complete Rear Trim Board
  • Single Side Load Door Single Side Load Door
  • Kerbside Load Door
  • Load Floor Liner-Moulded
  • Extended Range Single FU/TNK
