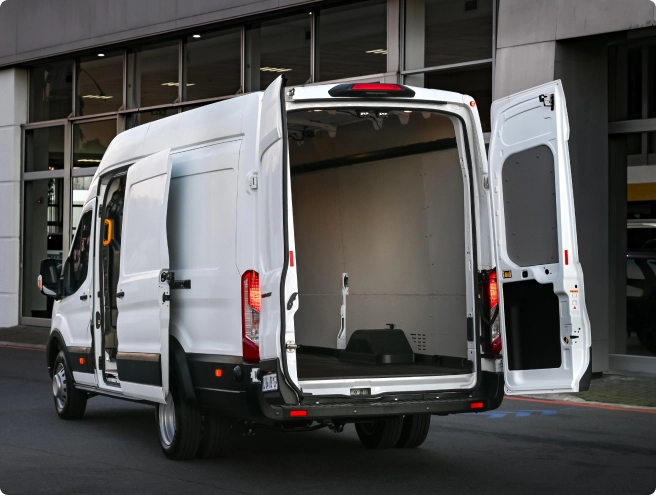

Space to thrive
Expertly designed to meet the needs of your business, the Transit Van 470ELWB model offers a generous load space of 15.1 cubic meters, providing all the space you need for transporting your goods and equipment.

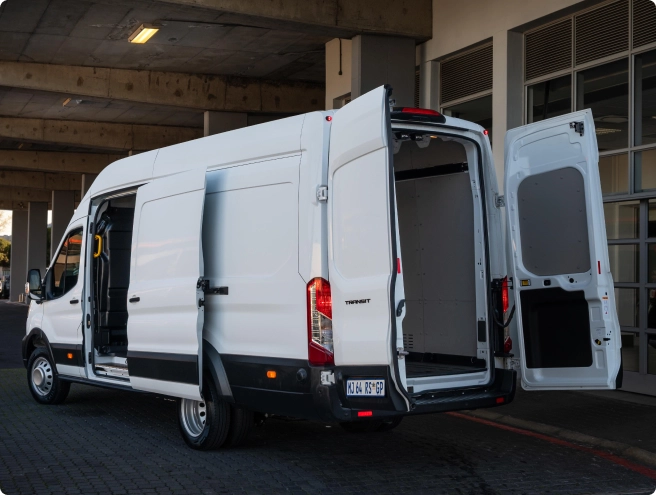

Practicality
Transit Van 470ELWB is built for the demands of your work life. With practical rear cargo doors that open 180 degrees, loading and unloading is made easier than ever. The sliding side door provides convenient access in tight spaces. Whether you're hauling equipment or deliveries, this van has you covered.

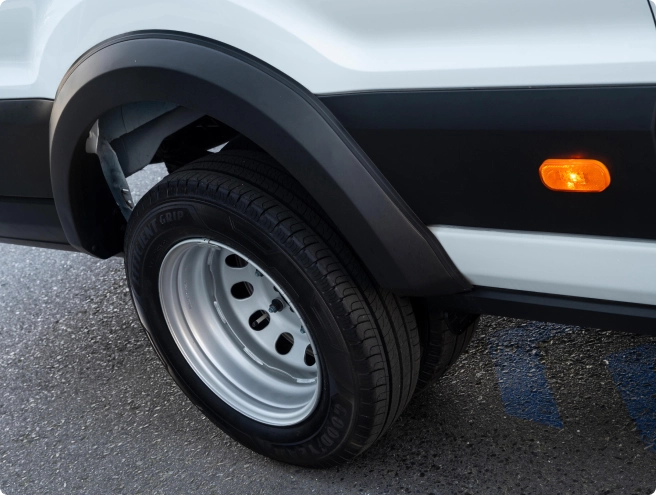

Dual Rear Wheel
The 10 Tie-Down Loops keep your cargo secure, preventing any rattling or damage during transit.

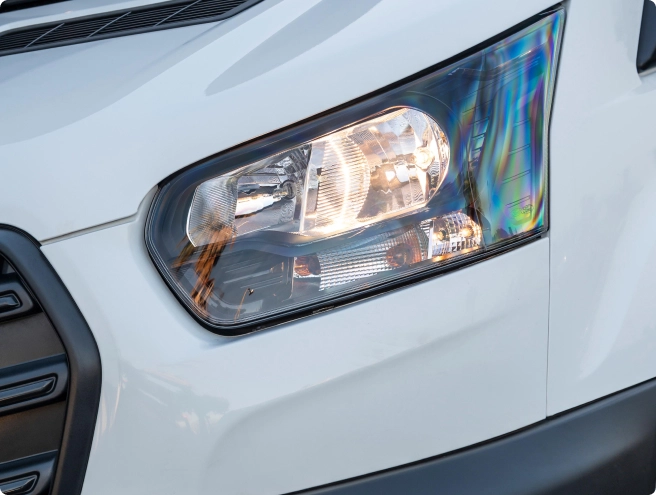

LED Headlights
The Transit Van 470ELWB is designed to give you total confidence during late-night shifts and early-morning hauls. With its advanced Projector-style Halogen Headlamps, the Quad-Beam system delivers a sharp, concentrated focus that pierces through the darkness.
Engine
Suspension
Front: Independent MacPherson struts, variable-rate coil springs, stabiliser bar and gas pressurised shock absorbers
Rear suspension: leaf springs, gas-pressurised shock absorbers
Brakes
Front ventilated discs
Rear solid discs
Emergency brake warning
Anti-lock Braking System (ABS) with Electronic Brakeforce Distribution (EBD)
Emergency Brake Assist (EBA)
Dimensions (mm) - Exterior
Overall length (mm): 6,758
Overall width - with mirrors (mm): 2,126
Wheel base (mm): 3,750
Sliding door width (mm): 1,300
Sliding door aperture height (mm): 1,600
Rear door width (mm): 1,565
Rear door aperture height (mm): 1,987
Front track (mm): 1,740
Rear track (SRW) (mm): 2110
Dimensions - Interior
Max load length @ floor (no Bulkhead) (mm): 4,373
Max load length @ floor (with Bulkhead) (mm): 4,217
Max load length @ 1.2m high (with Bulkhead) (mm): 4,073
Max load width (mm): 1,784
Load space between wheel arches (mm): 1,392
Load floor to roof (mm): 2,025
Loadspace (max load) (m3): 15.1
Loadspace (SAE method) (m3): 13.5
Loadspace (VDA method) (m3): 14
Max load length @ floor (no Bulkhead) (mm): 4,373
Max load length @ floor (with Bulkhead) (mm): 4,217
Max load length @ 1.2m high (with Bulkhead) (mm): 4,073
Max load width (mm): 1,784
Load space between wheel arches (mm): 1,392
Load floor to roof (mm): 2,025
Loadspace (max load) (m3): 15.1
Loadspace (SAE method) (m3): 13.5
Loadspace (VDA method) (m3): 14
Vehicle Masses
Gross Vehicle Mass (GVM) (kg): 4,700
Gross Combined Mass (GCM) (kg): 7,000
Fuel tank capacity (L): 80
Kerb weight (kg): 2,355
Gross payload (kg): 2,270
Towing mass (braked) (kg): 3,500
Towing mass (unbraked) (kg): 750
Safety & Security
Driver airbag
Electronic Stability Programme (ESP)
Hill Launch Assist (HLA)
Traction control
Rollover Mitigation (ROM)
Centre high-mounted rear stop lamp
Power door locks
Door entry remote
Rear doors mounted with lock/unlock switch
Drive-away locking with crash unlocking
Door auto-relocking enabled
Two-stage unlocking with configurable unlocking config
Tyre Pressure Monitoring System
Alarm & Mobiliser
Driver airbag
Electronic Stability Programme (ESP)
Hill Launch Assist (HLA)
Traction control
Rollover Mitigation (ROM)
Centre high-mounted rear stop lamp
Power door locks
Door entry remote
Rear doors mounted with lock/unlock switch
Drive-away locking with crash unlocking
Door auto-relocking enabled
Two-stage unlocking with configurable unlocking config
Tyre Pressure Monitoring System
Alarm & Mobiliser
Comfort & Convenience
Radio with single AM/FM antenna, 2 front speakers, 2 tweeters
USB port, Bluetooth® and Voice Control
Steering-wheel-mounted audio controls
Vechile's Modem connected to Ford app
Ford app Connect - featuring Remote Start (AT only), Lock / Unlock, Vehicle Locator, Vehicle Health Alerts, Vehicle Status, Oil Life, Enhanced Customer Connectivity Settings
Digital Instrument Cluster with Configurable Display
Colour Multi-Function Touch Screen Display: 12" Screen
SYNC®4
Marketing CV Pack 1
Radio with single AM/FM antenna, 2 front speakers, 2 tweeters
USB port, Bluetooth® and Voice Control
Steering-wheel-mounted audio controls
Vechile's Modem connected to Ford app
Ford app Connect - featuring Remote Start (AT only), Lock / Unlock, Vehicle Locator, Vehicle Health Alerts, Vehicle Status, Oil Life, Enhanced Customer Connectivity Settings
Digital Instrument Cluster with Configurable Display
Colour Multi-Function Touch Screen Display: 12" Screen
SYNC®4
Marketing CV Pack 1
Interior, Seating & Load Space
2 x 12V power points
Cup Holders: 2
Standard cloth seats
Front driver 3-point seatbelt with pre-tensioners
Front passenger 3-point seatbelts with load limiter
Front power windows with driver one-touch up/down functionality
Manual 2-Way Driver Seat
Driver Arm Rest
Partial floor cover - rubber insulated easy-clean (or similar)
Load space lighting
Load compartment floor tie-down hooks: 12
2 x 12V power points
Cup Holders: 2
Standard cloth seats
Front driver 3-point seatbelt with pre-tensioners
Front passenger 3-point seatbelts with load limiter
Front power windows with driver one-touch up/down functionality
Manual 2-Way Driver Seat
Driver Arm Rest
Partial floor cover - rubber insulated easy-clean (or similar)
Load space lighting
Load compartment floor tie-down hooks: 12
Ford Protect
Comprehensive warranty: 4years / 120 000 km
Roadside assistance: 4years / unlimited km
Corrosion warranty: 5 years / unlimited km
Service plan: 6
Service intervals: 15 000 km
Driver Assistance Package with 360-degree Camera
High-Mounted LED Downlight
Dual Exterior Power Mirror Power Fold Back
Collision Mitigation System 3 Level 2
Adaptive Speed Control
Blind Spot Information System
Lane Changing Warning & Aid
Reverse Parking Aid
Front Parking Aid
Parking Slot Aid
Reverse Brake Assist
ICE Pack 3
Front/Side/Rear View Camera
Front Fog Lamps
High-Mounted LED Downlight
Dual Exterior Power Mirror Power Fold Back
Collision Mitigation System 3 Level 2
Adaptive Speed Control
Blind Spot Information System
Lane Changing Warning & Aid
Reverse Parking Aid
Front Parking Aid
Parking Slot Aid
Reverse Brake Assist
ICE Pack 3
Front/Side/Rear View Camera
Front Fog Lamps
Marketing CV Pack #1
